Description

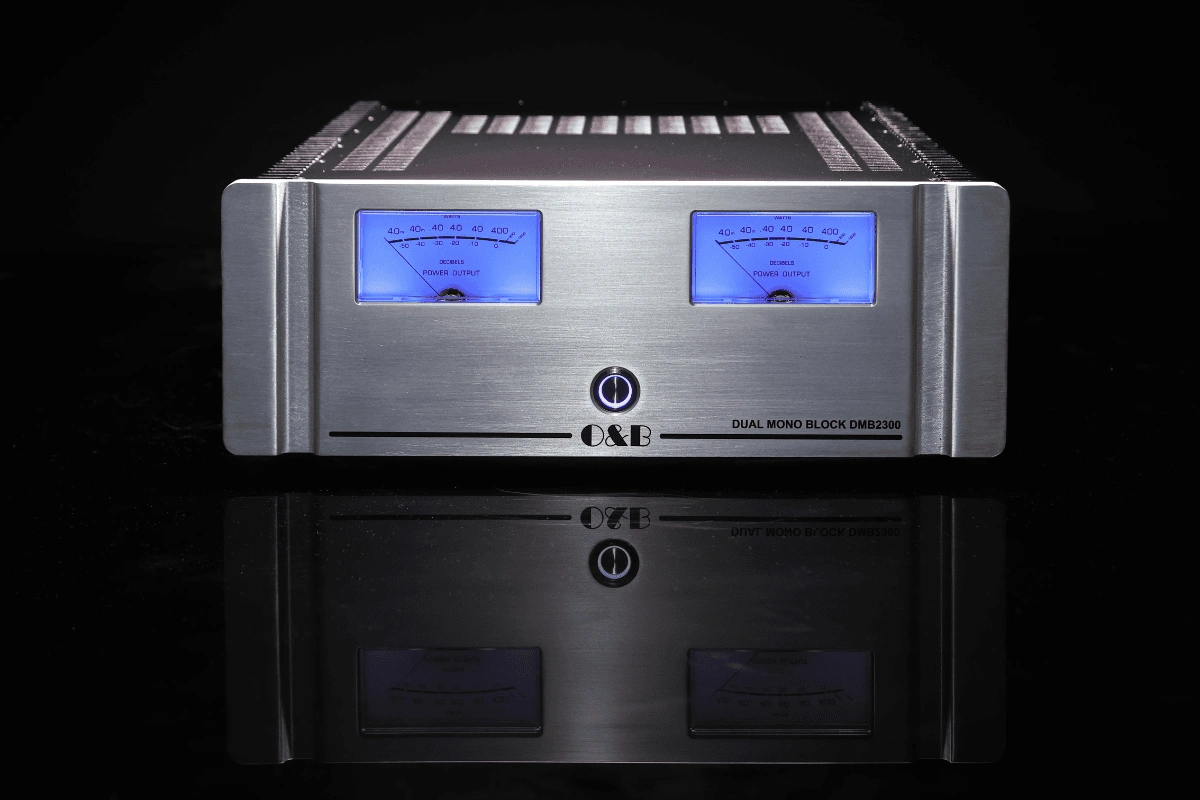

O&B DMB2300 2 Channel Dual Monoblock Power Amplifier

2 Channel Power Amplifier Dual Monoblock

The DMB2300 is the ultimate solution for audiophiles seeking the best of both worlds. This dual-channel powerhouse delivers performance equivalent to monoblocks, while maintaining the convenience of a single unit.

Specifically designed for those who demand exceptional sonic purity, the DMB2300 boasts minimal cross-talk and true channel separation. With an impressive output of 150W at 8Ω and 300W at 4Ω, this amplifier is capable of driving even the most demanding speakers with ease.

Experience unparalleled audio fidelity and discover why the DMB2300 is the go-to choice for discerning music enthusiasts.

Available in Options:

Silver anodised faceplate
Black anodised faceplate
Retro look – Blue VU meters
Retro look – Amber VU meters

Product Specifications

Power Output:	300W at 4Ω BCD, 150W at 8Ω BCD (RMS)
Frequency Response:	20Hz – 50kHz(±0.5db)
SNR:	> 114dBr(±2db)
THD+N:	< 0.05% (-3dB)
Dimensions:	17” wide x 6.5” high x 17” deep (not including connectors and feet)
Weight:	50 LBS/ 23 Kgs (unboxed)
ABC	DMB2300 – DUAL MONOBLOCK POWER AMPLIFIER Topology Class-A/AB Channels 2 RMS Output Power 8Ω BCD (Both Channel Driven) 150W 4Ω BCD 300W Head-Room Output Power 8Ω BCD 4Ω BCD 250W 500W Class A Operation Upto 20W at 4 Ω Peak Current Delivery 55A 1Ohms/1ms Frequency Response 20Hz – 50kHz(±0.5db) Signal to Noise Ratio > 114dBr(±2db) THD+N. 8Ω. 1kHz < 0.05% (-3dB) Minimum Recommended Load Impedance (per channel) 4 Ω (which equals one 4Ω load or two paralleled 8Ω loads). Damping Factor (8Ω load) >= 700. Input Sensitivity RCA 1/0.7V. Switchable gain only on RCA input, switch at back panel Input Sensitivity XLR 1.55V Gain RCA 30/34 HPF Selectable – Full bandwidth or -12db Roll off at 20hz, switch at back panel Input Impedance 33 KΩ Input Connections Unbalanced (RCA) & XLR (Selector Switch at back Panel) Speaker Output Connections Audiophile grade 5-way binding posts. Power Requirements 230 VAC @ 50 / 60 Hz AC Power switch Blue Led Ring Switch (switches AC main power). Trigger 12V Trigger For amplifier Standby Feature, connector provided at back panel Protection Protected against excessive operating temperature, shorted speaker connections, ground faults. Dimensions 17” wide x 6.5” high x 17” deep (not including connectors and feet). Weight 50 LBS/ 23 Kgs (unboxed) Warranty 3years (The Device will be serviced at Factory in Mumbai)
