Description

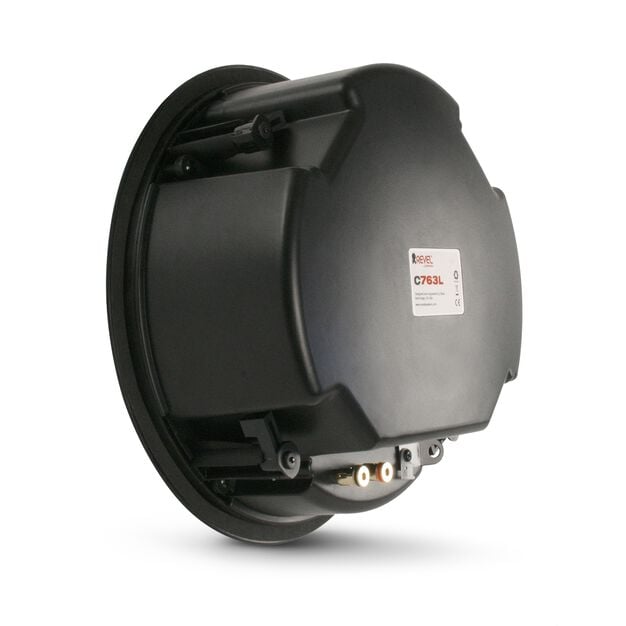

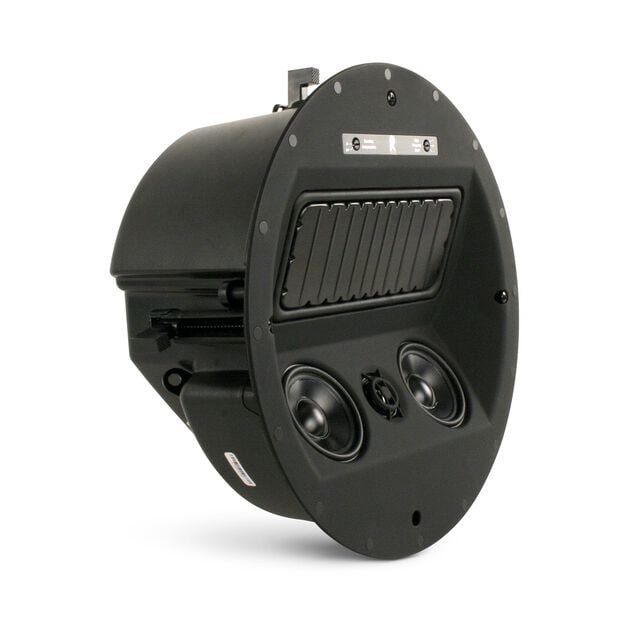

Revel C763L Specialty In-Ceiling Loudspeaker
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Technical Details
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-

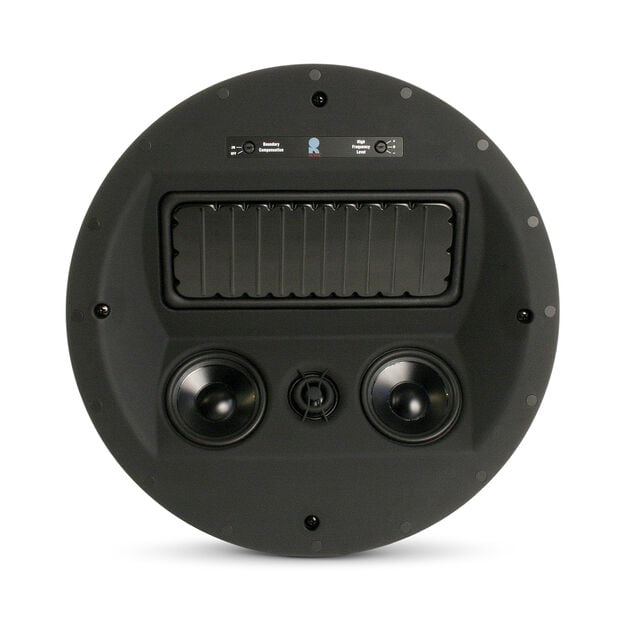

1-inch (25mm) angle-adjustable, aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
-
Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
- General Specifications
-

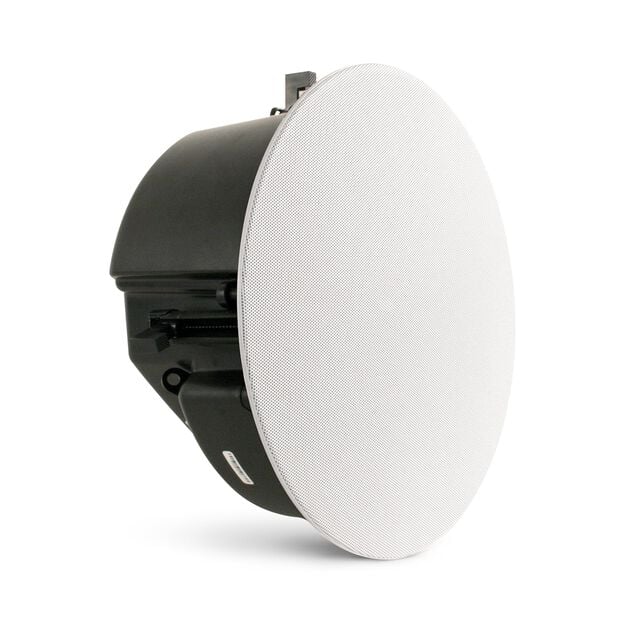

Height Square grille finished height 12.5″ (31.8 cm) Width Square grille finished width 12.5″ (31.8 cm) Depth Mounting depth 5.7″ (14.5 cm) Weight 4 lb (1.8 kg) / Shipping weight 5.2 lb (2.4 kg) Included Accessories Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5″ (31.8 cm) High Frequency Driver Components 1″ aluminum high-output tweeter with waveguide Low Frequency Extension High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation Low Frequency Driver Components 7.8″ x 3.4″ Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer Mid-Frequency Driver Components Two 3.5″ micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) Recommended Amplifier Power 10 – 200 Watts RMS
