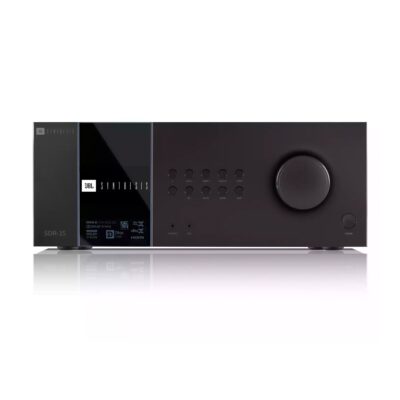

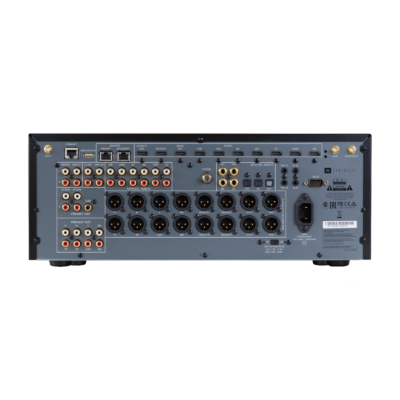

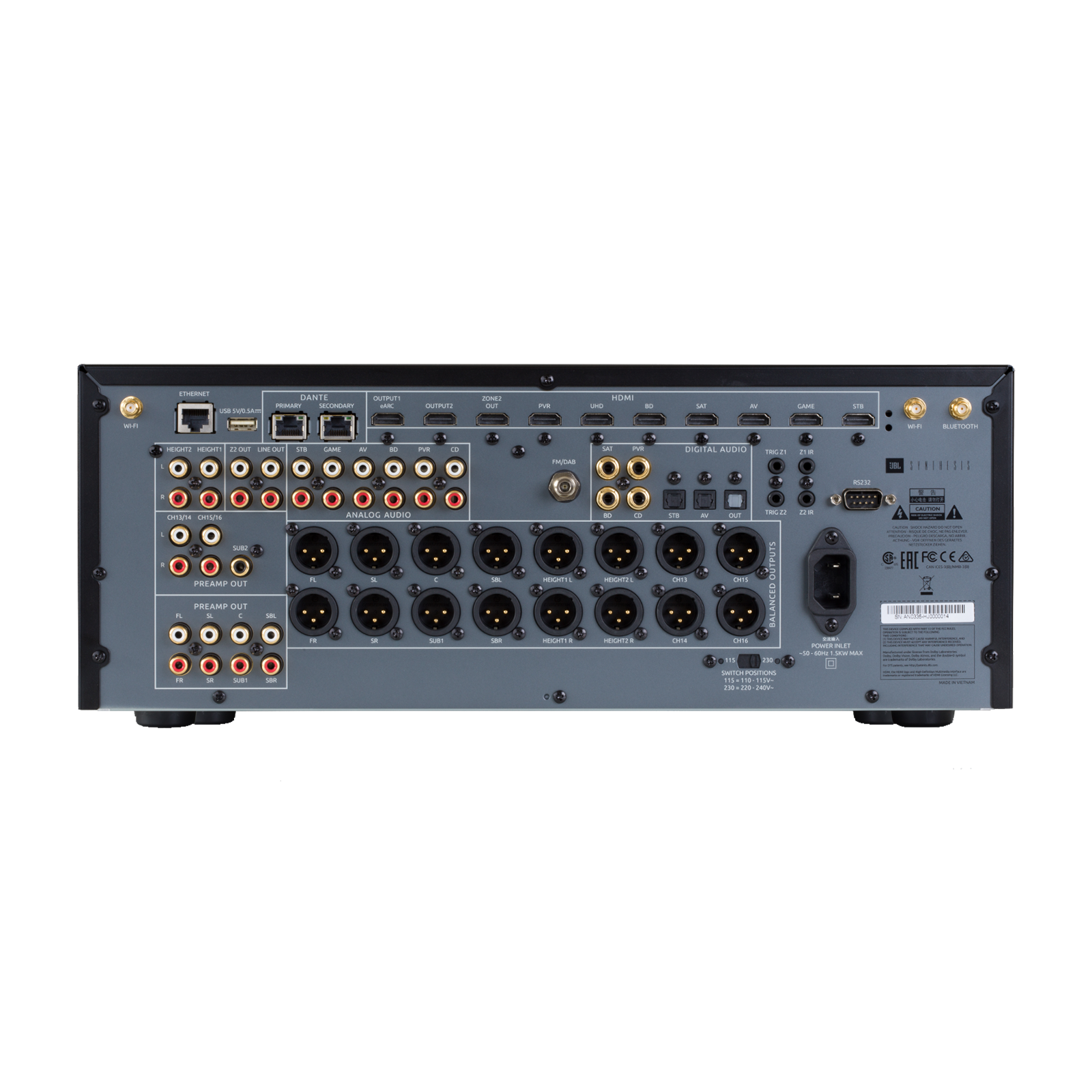

JBL Synthesis SDP-55 Immersive Surround Sound Processor 16 channels

• Immersive High Resolution Sound: 16 Channels of discrete high resolution processing with 4 user configurable channels enable a plethora of set up options for Dolby Atmos, DTS:X3D, Auro 3D Immersive Surround Sound Applications.
• DANTE Network Audio: All 16 channels of processed audio can be routed on a single CAT5e, CAT6 cable over a standard network. Dante is easy to set up and compatible with Dante enabled JBL Synthesis amplifiers.
• IMAX Enhanced: IMAX Enhanced-certified AV receiver and features DTS:X immersive audio decoding that is optimized to properly reproduce the full dynamic range of IMAX theatrical sound mixes available in IMAX Enhanced content.
• Play music over Ethernet or Wi-Fi, with Chromecast built-in, Apple AirPlay 2, or the Harman MusicLife app.
• Roon Ready and MQA supported
• Play music directly from phones and tablets with Bluetooth aptX® HD.
• Balanced XLR Outputs: A transformerless balanced output of 2V RMS (max.10 V RMS) ensures ample gain and common mode noise rejection.
• Cinematic Video Experience: Dolby Vision, HDR10+, HDMI2.0b with HDCP2.2, 4K “Ultra HD” as well as 3D video capabilities are built-in.
• Designed for the Integrator: With an available rack mount kit, DANTE, eARC and an internal Java-based configuration page, Dirac Live, IP, IR, and RS232, the install, set up, and calibration has never been easier.
• Logic 16: Logic 16 will up-mix any input source from mono up to 15.1, including all Dolby formats with natural astonishing 3D sound. In addition Dolby, DTS Neural:X, and Auro 3D upmixers are on board.

General Specifications

• Maximum input – 4.5V RMS
• Nominal sensitivity – 1V, 2V, 4V (user adjustable)
• Input impedance – 47kΩ
• Signal/noise ratio (A-wtd ref 100W) normal/stereo direct – 100dB/110dB
• Frequency response – 20Hz—20kHz ± 0.1dB
• Nominal output level (single-ended/balanced) – 1V RMS / 2V RMS (max. 5V RMS / 10 V RMS)
• Output impedance – 560Ω
• THD+N (20Hz—20kHz) – –100dB
• Maximum output level into 32Ω – 5Vrms
• Output impedance – 560Ω:<100Ω
• Mains voltage – 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum) – 50W (Thermal dissipation approx. 170 BTU/hour)
• Power consumption (idle, typical) – 40W (Thermal dissipation approx. 170 BTU/hour)
• Power consumption (standby) – <0.5W
• Dimensions W x D (including speaker terminals) x H (including feet) – 17.05 x 16.73 x 6.73″
• Weight (net) – 23.37 lbs
• Weight (packed) – 30.64 lbs
